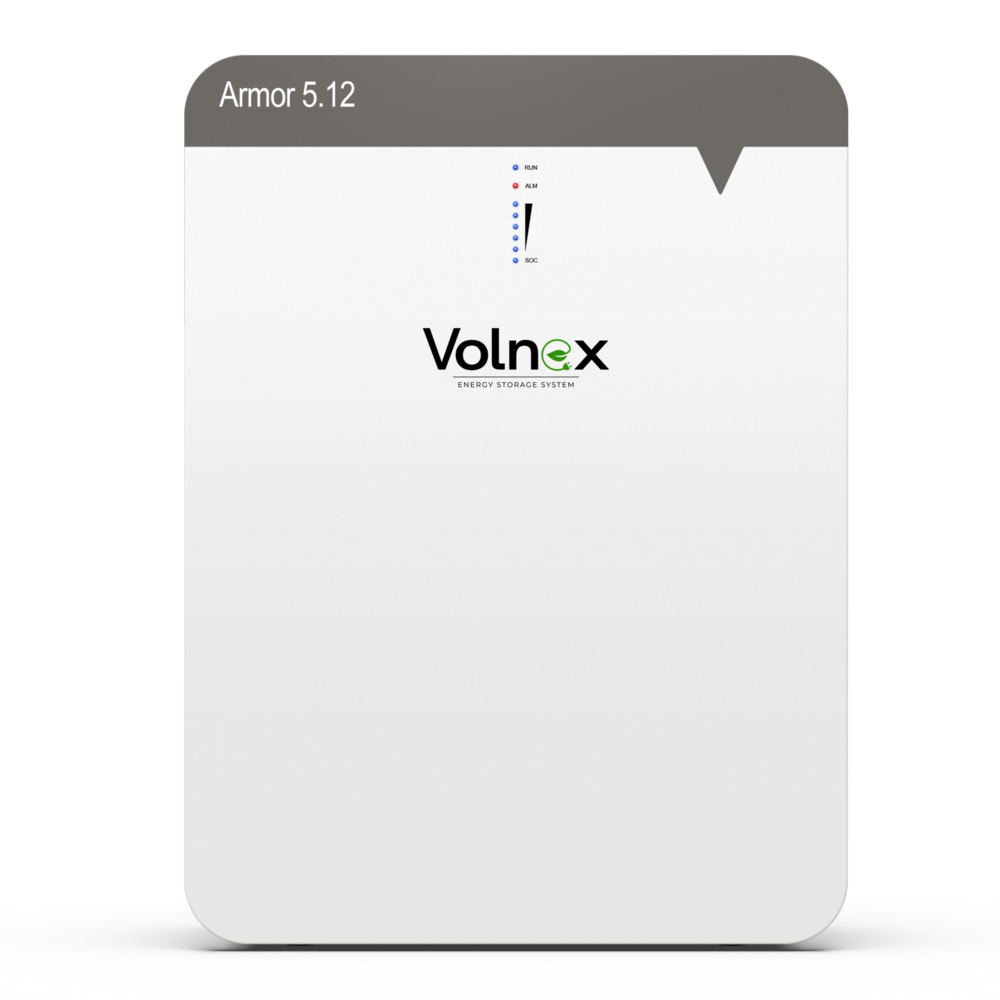

Volnex Armor 5.12
5.12 kWh · 100 Ah · LiFePO₄ Battery · Low Voltage Residential ESS · IP65 Protection · 10-Year Warranty
Description
The Volnex Armor 5.12 is a premium low-voltage residential energy storage battery designed for homeowners who require reliable backup power, maximum solar self-consumption, and flexible indoor or outdoor installation. Built with Grade A LiFePO₄ (LFP) battery cells, the Armor 5.12 combines exceptional safety, long cycle life, and intelligent battery management while introducing a rugged IP65-rated enclosure for enhanced environmental protection.
Designed for seamless compatibility with leading hybrid and off-grid inverter systems, the Volnex Armor 5.12 delivers dependable performance, high charging efficiency, and uninterrupted backup power during utility outages. Its weather-resistant construction and advanced safety features make it an ideal solution for residential solar energy storage where durability and long-term reliability are essential.
Key Benefits
- Grade A LiFePO₄ battery cells for maximum safety and longevity
- 5.12 kWh usable energy storage
- Intelligent Battery Management System (BMS)
- CAN, RS485, RS232 and Wi-Fi communication support
- One-button start/stop with parallel expansion support
- Auto aerosol fire suppression system for enhanced protection
- IP65-rated enclosure for indoor and outdoor installations
- CCS manufacturing technology for improved reliability
- Supports up to 15 batteries connected in parallel
- 10-Year Warranty (5 Years Product + 5 Years Service)
Key Features
- High-quality Class A LFP battery cells with strict capacity grading
- 100% factory-tested for safety, performance, and reliability
- Intelligent voltage, temperature, and State of Charge (SOC) monitoring
- Automatic aerosol fire suppression system for enhanced safety
- Real-time monitoring and firmware update support
- CCS manufacturing technology for superior durability
- Weather-resistant IP65 enclosure for versatile installation scenarios
- Compatible with major hybrid and PCS inverter brands
- Floor-mounted or wall-mounted installation options
- Designed for residential, backup, hybrid, and off-grid energy storage applications
Technical Specifications
| Specification | Volnex Armor 5.12 |
|---|---|
| Battery Technology | LiFePO₄ (LFP) |
| Usable Battery Energy | 5120 Wh (5.12 kWh) |
| Cell Capacity | 100 Ah |
| Nominal Voltage | 51.2 VDC |
| Operating Voltage | 44.8 – 56.16 V |
| Maximum Charge / Discharge Current | 100 A |
| Communication | CAN / RS485 / RS232 / Wi-Fi |
| Display | SOC Status Indicator, LED Indicator |
| Dimensions (W × D × H) | 470 × 160 × 635 mm |
| Weight | 48.8 kg |
| Installation | Floor Mounted / Wall Mounted |
| Operating Temperature | Charge: 0°C to 50°C • Discharge: -15°C to 50°C |
| Humidity | ≤95% RH (Non-condensing) |
| Protection Rating | IP65 |
| Cycle Life | 6000 Cycles @ 80% DOD |
| Scalability | Up to 15 Batteries in Parallel |
| Applications | On-Grid • Off-Grid • Backup • UPS |
| Compatible Inverters | Compatible with major PCS brands |
| Compliance | UN38.3 • IEC62619 • IEC61000 |
| Warranty | 10 Years (5 Years Product + 5 Years Service) |
Applications
The Volnex Armor 5.12 is designed for residential and light commercial energy storage systems where reliable backup power and weather-resistant installation are required.
Suitable applications include:
- Residential solar energy storage
- Home backup power systems
- Hybrid inverter installations
- Off-grid energy systems
- UPS backup applications
- Peak shaving and energy optimization
- Indoor and outdoor energy storage installations
- Self-consumption optimization
Safety & Reliability
Safety is at the heart of the Volnex Armor Series. The Volnex Armor 5.12 features an advanced Battery Management System (BMS) that continuously monitors battery voltage, operating temperature, charging status, and State of Charge (SOC) to ensure safe, stable, and efficient operation.
The integrated automatic aerosol fire suppression system, intelligent fault protection, and real-time monitoring provide multiple layers of safety under demanding operating conditions. Combined with its IP65-rated enclosure and advanced CCS manufacturing technology, the Armor 5.12 is built to deliver dependable long-term performance for both indoor and outdoor residential energy storage applications.
What’s Included
- Volnex Armor 5.12 Battery
- Armor 5.12 Parallel Cable
- Armor 5.12 to PCS Communication Cable
